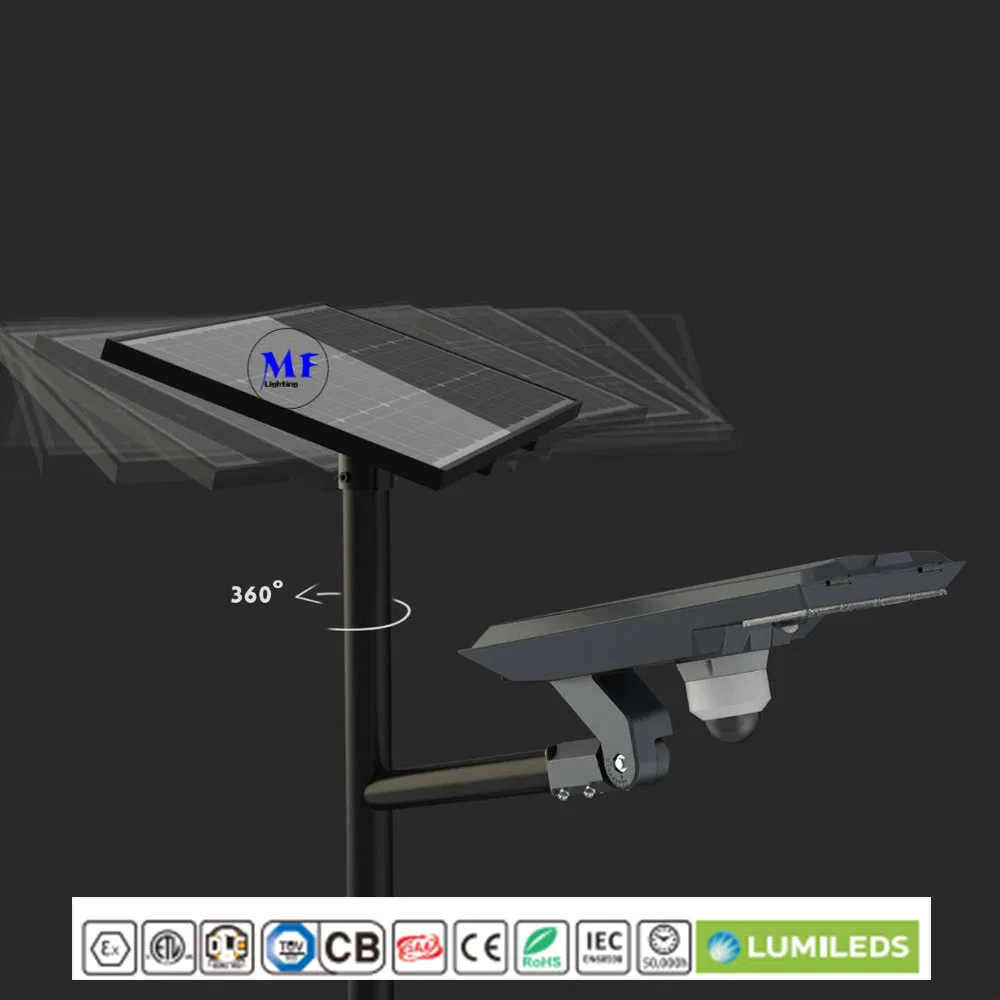

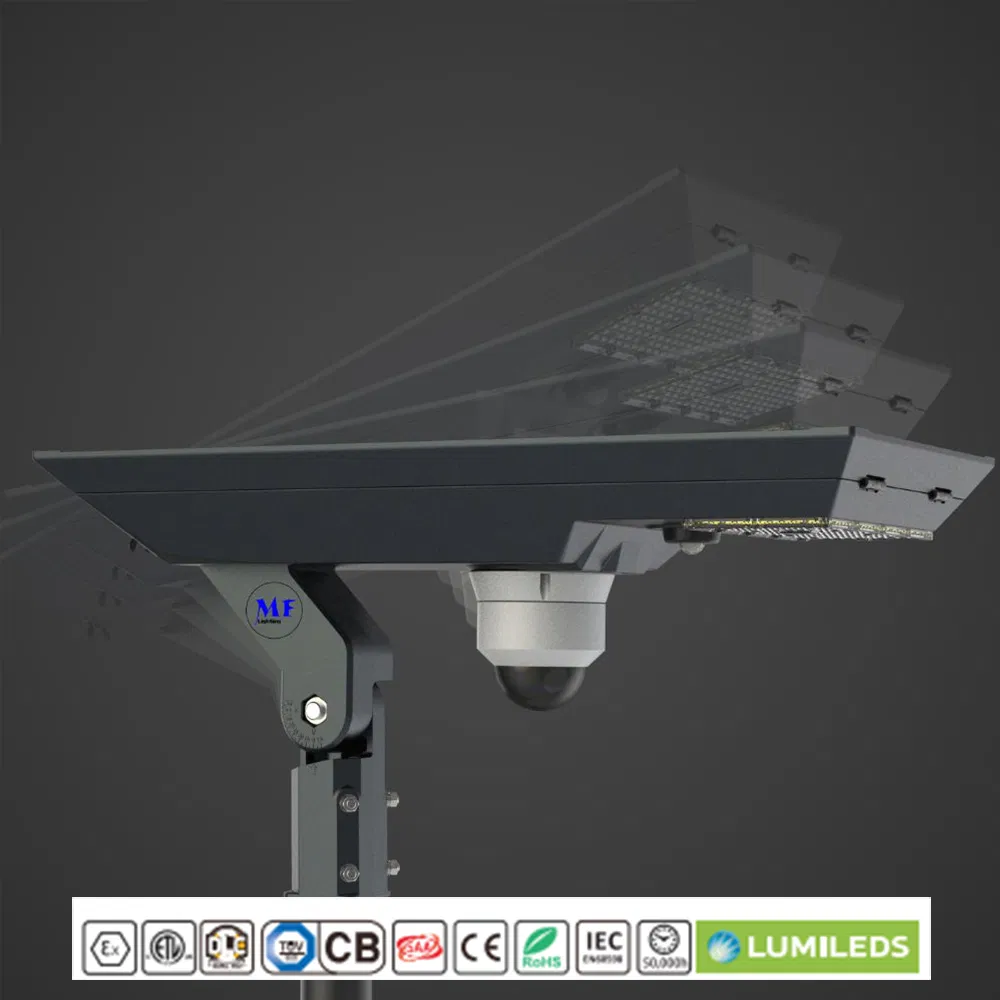

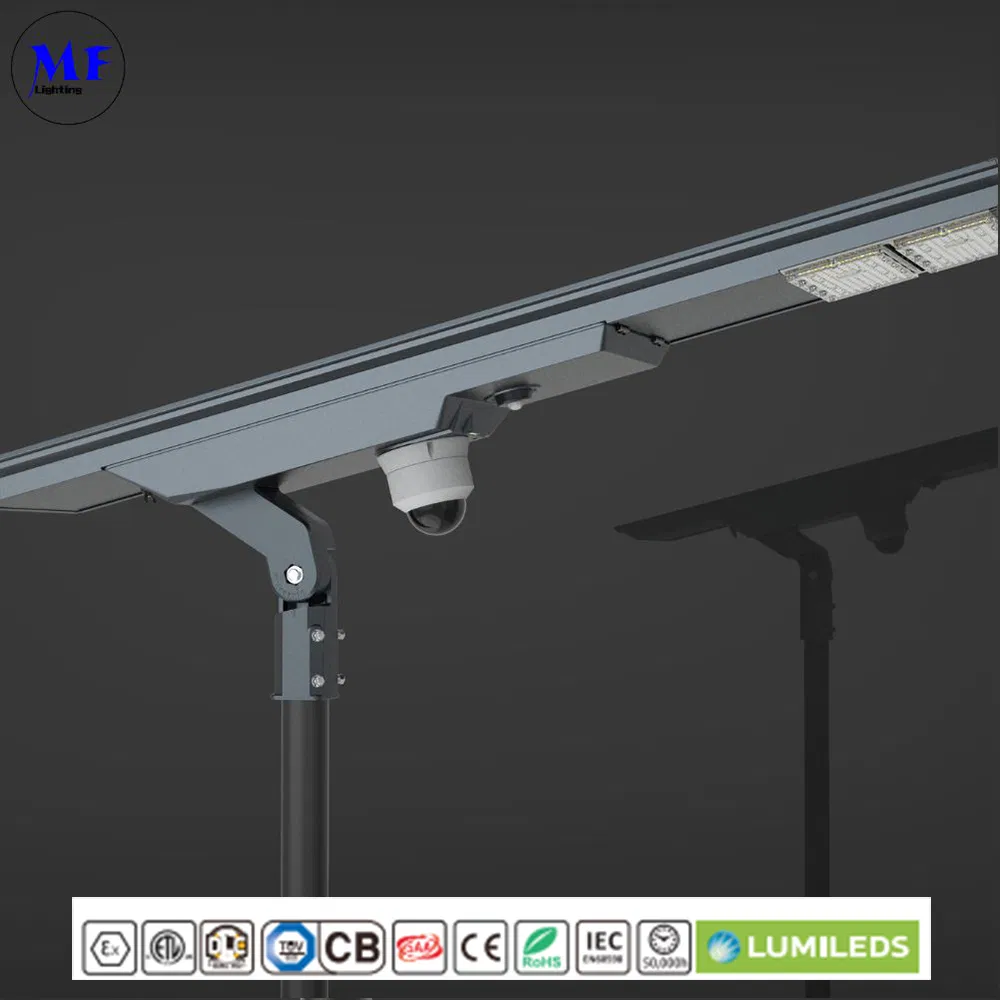

Factory Price 20W Solar Light IR/Motion ABS Body, IP65 Waterproof Design Sensor Security CCTV Camera COB SMD Integrated Outdoor Parking Light solar Light

Product Description

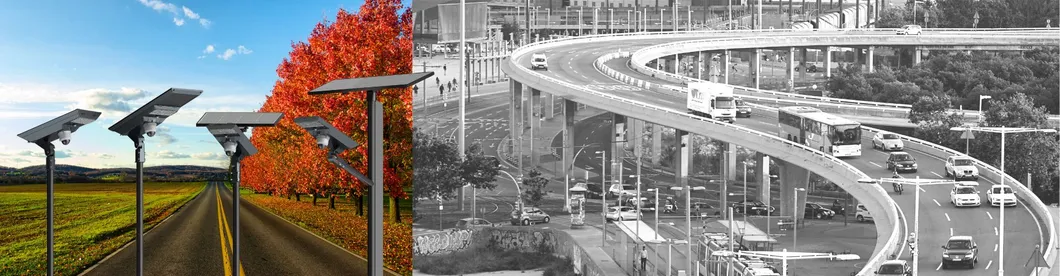

Solar Light Banner Feature Overview
Product Description

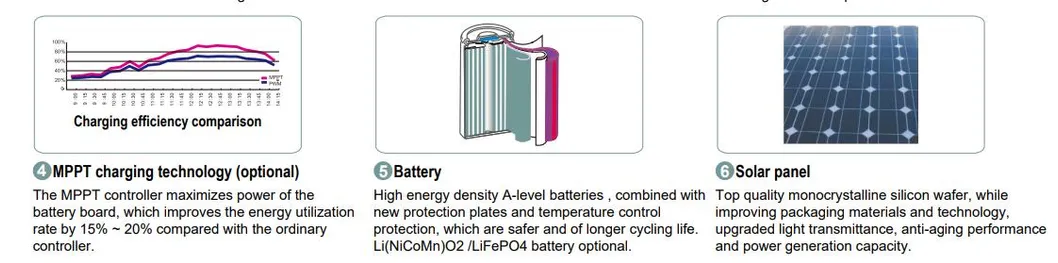

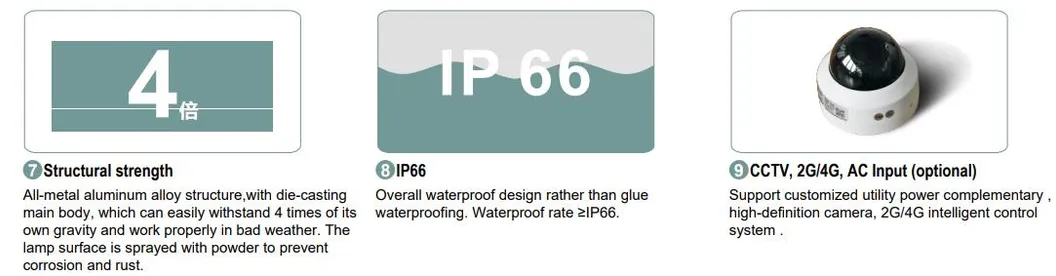

Factory price 20W Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking light Security CCTV Camera Solar Light Sensor Details Integrated Design

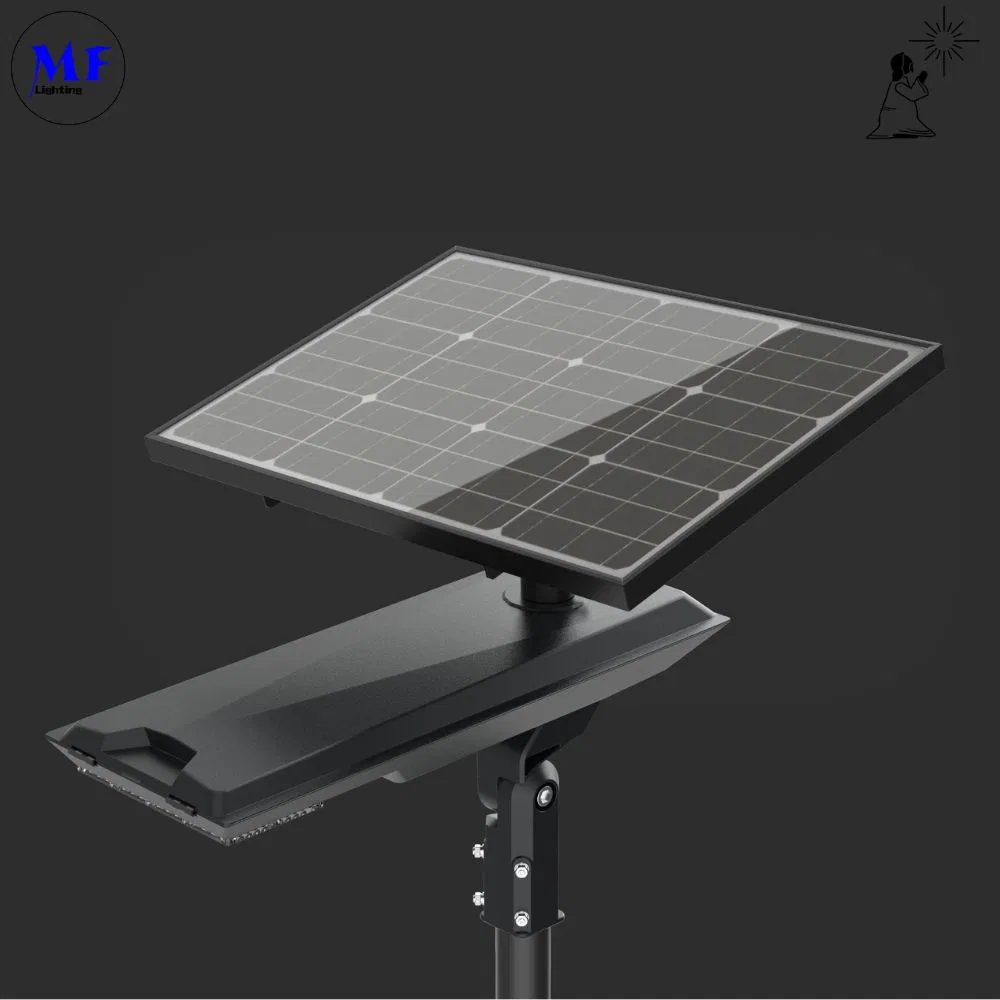

Solar Light View 1

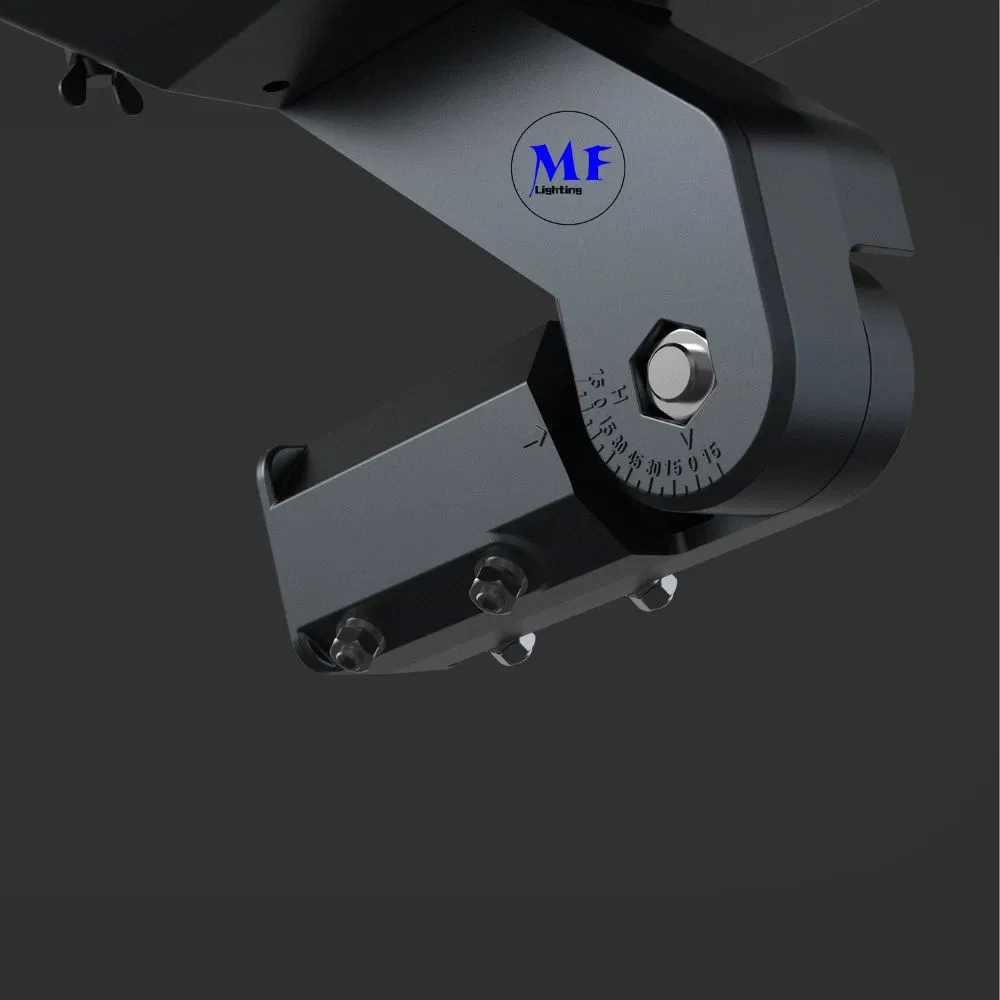

Solar Light View 2

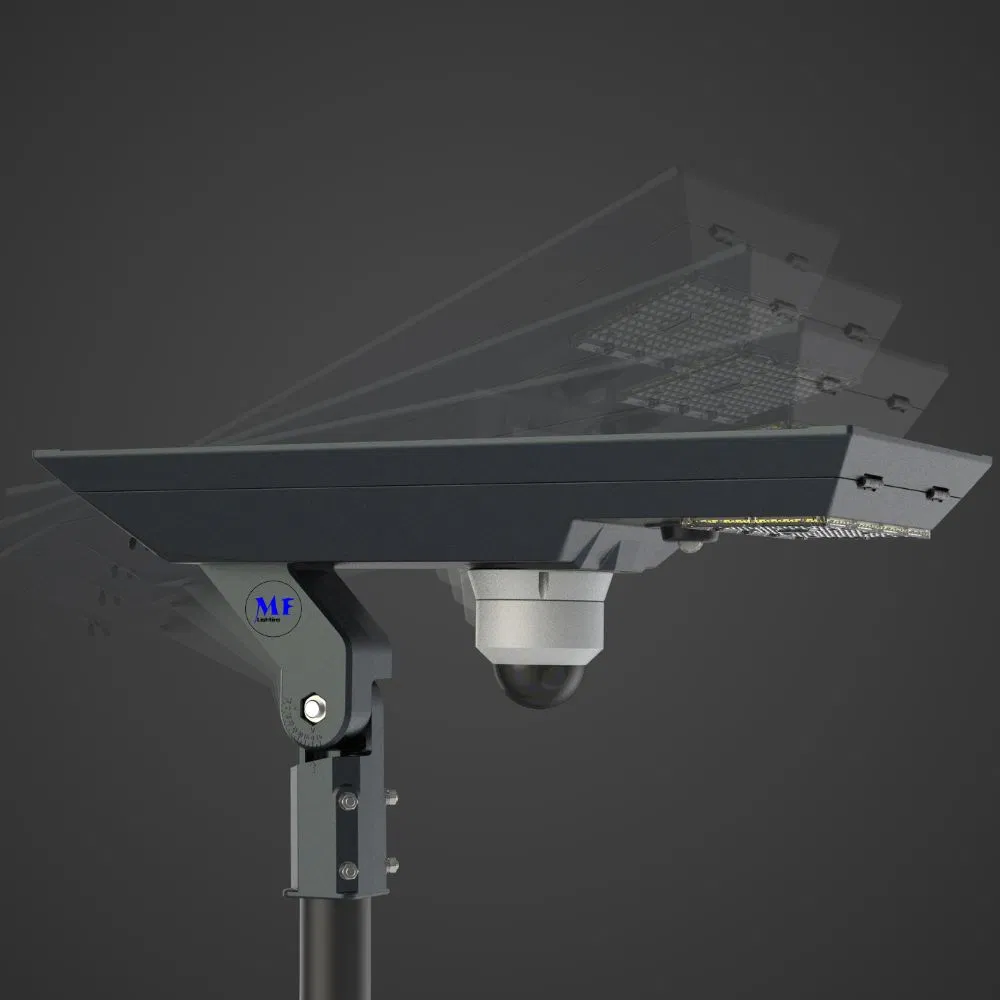

Solar Light View 3

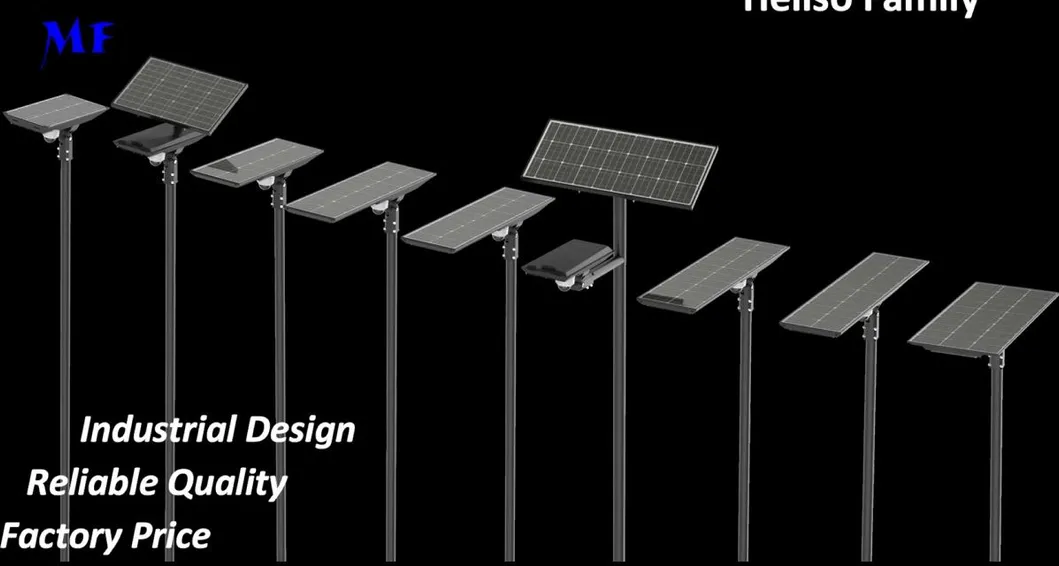

Technical Layout
Technical Specifications

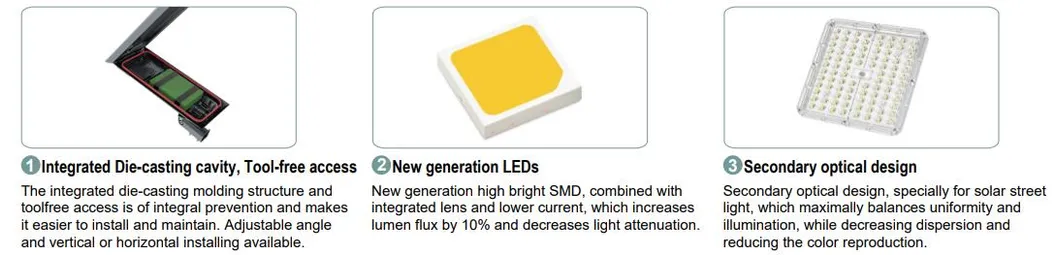

Feature Details
Color / Temp Warm white (4000±300K) Nature white (5000±300K) Cool white (5700±300K)
CRI ≥70
Beam Angle 155°/70° (20-120W, TM3), 155°/75° (60-120W, TM2)
Material ADC12, AL6063, PC
Discharge Time 12 hours/day, 3 days + 4 days low brightness
Control System PWM / MPPT / AC input
Battery Type 32-LiFePO4
Luminous Flux 2000 ~ 12000 lm (100 lm/W, Bespoke ≥175lm/W)
Install Height 4 ~ 8m
Control Ways PIR / Microwave / Time / Remote
LED Brand Lumileds / CREE Power 0.3 W
LED Size 3.0X3.0X0.52 mm CRI ≥70
Beam Angle 120° LED Efficiency 180-190 lm/W

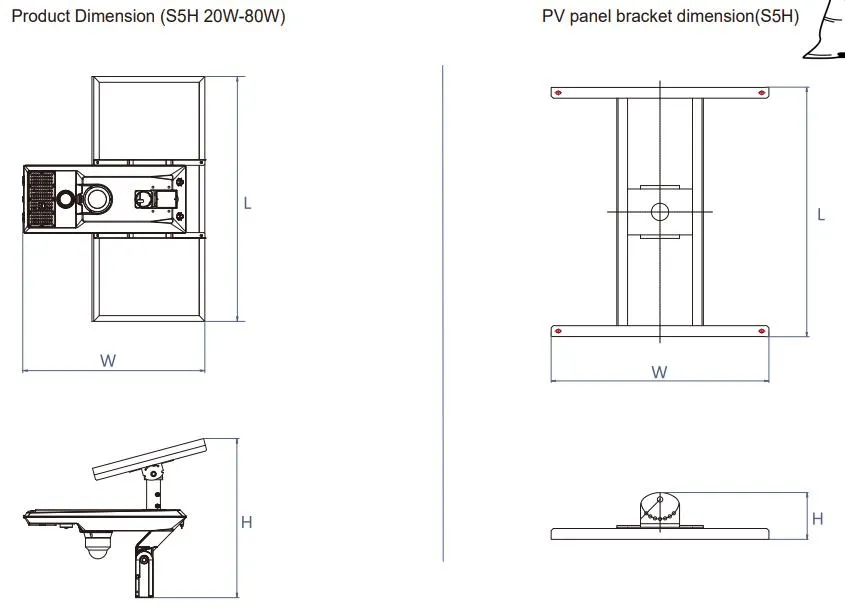

Product Dimensions & Photometry

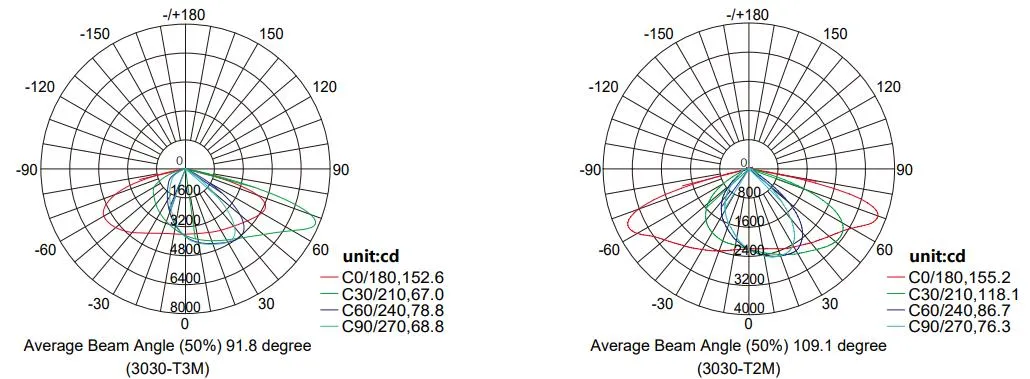

Product Dimensions Light Distribution Curve Light Distribution Photometric Data

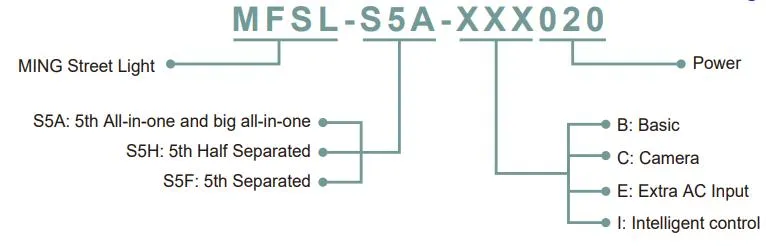

Type Model No. Power Lumen PV Panel Battery LED Qty
ALL-IN-TWOMFSL-S5H-XXX02020W2000 lm35W154 Wh60 pcs
MFSL-S5H-XXX03030W3000 lm35W230 Wh60 pcs
MFSL-S5H-XXX04040W4000 lm43W230 Wh60 pcs
MFSL-S5H-XXX05050W5000 lm58W307 Wh60 pcs
MFSL-S5H-XXX06060W6000 lm62W384 Wh144 pcs
MFSL-S5H-XXX07070W7000 lm86W461 Wh144 pcs
MFSL-S5H-XXX08080W8000 lm94W538 Wh144 pcs

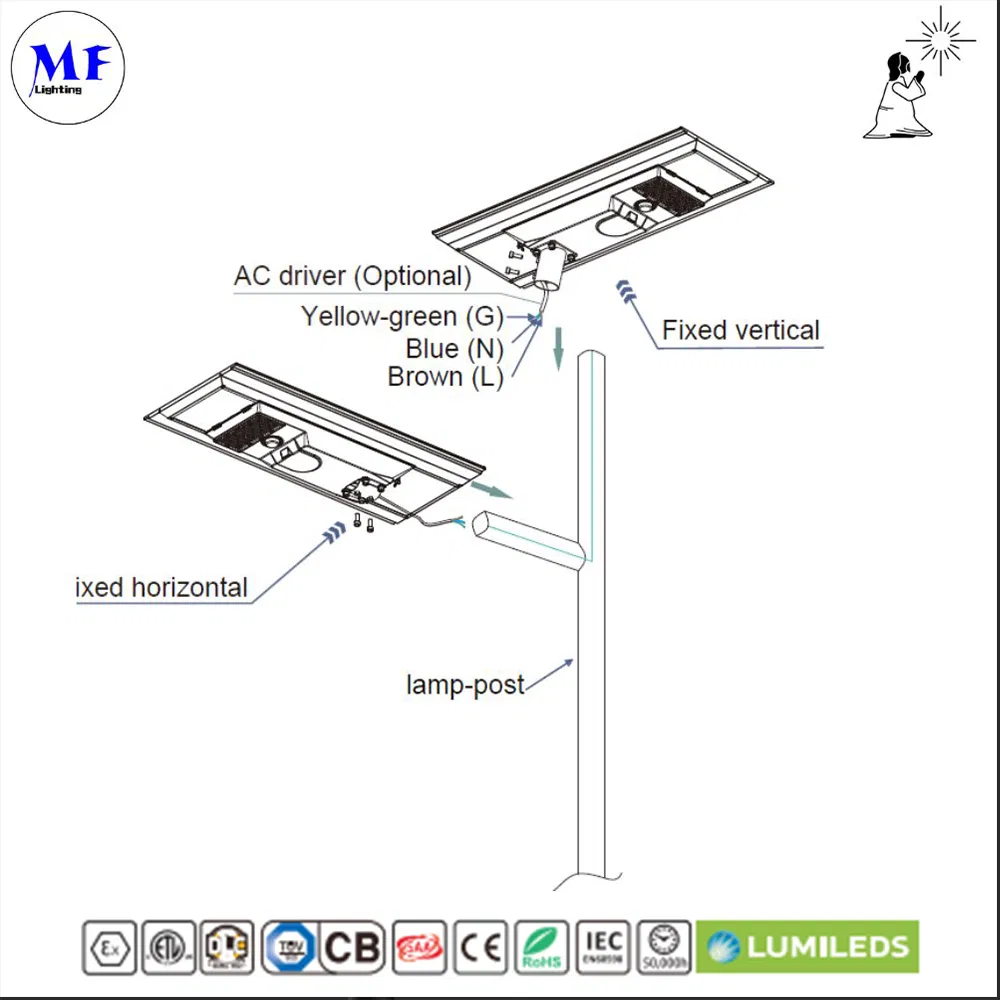

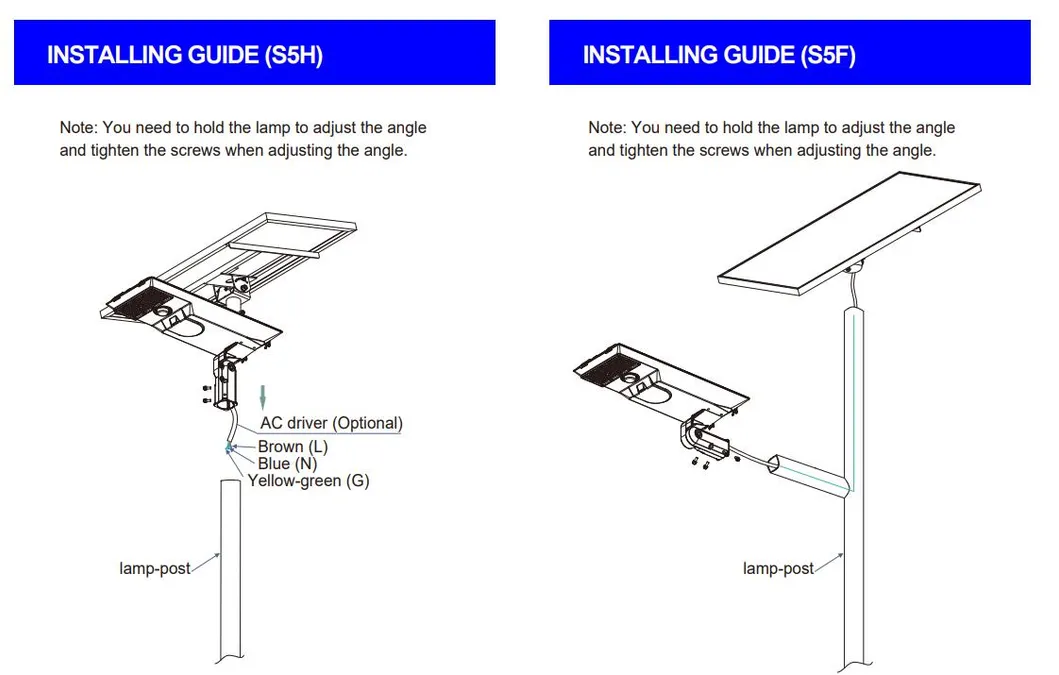

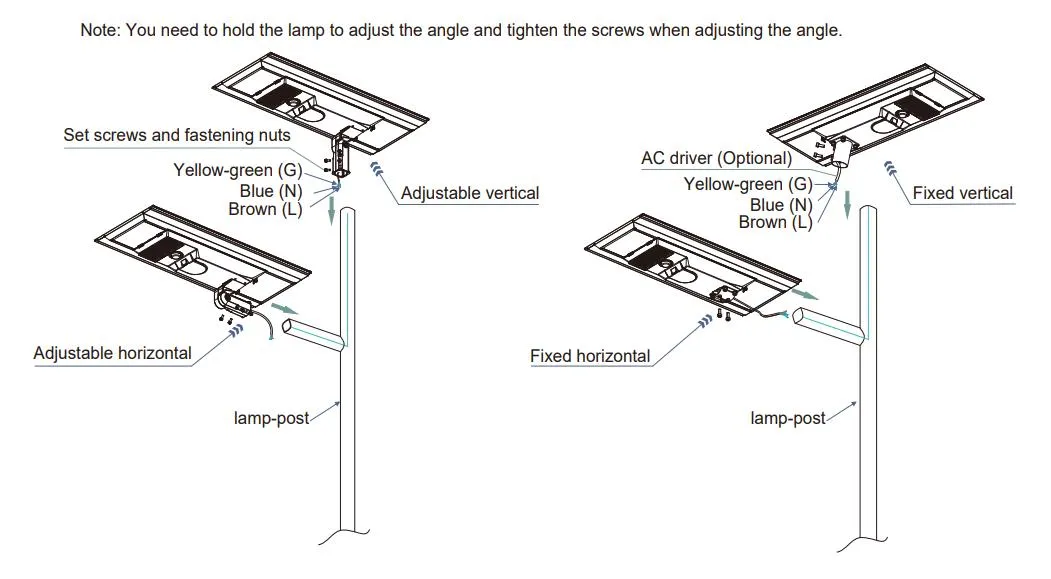

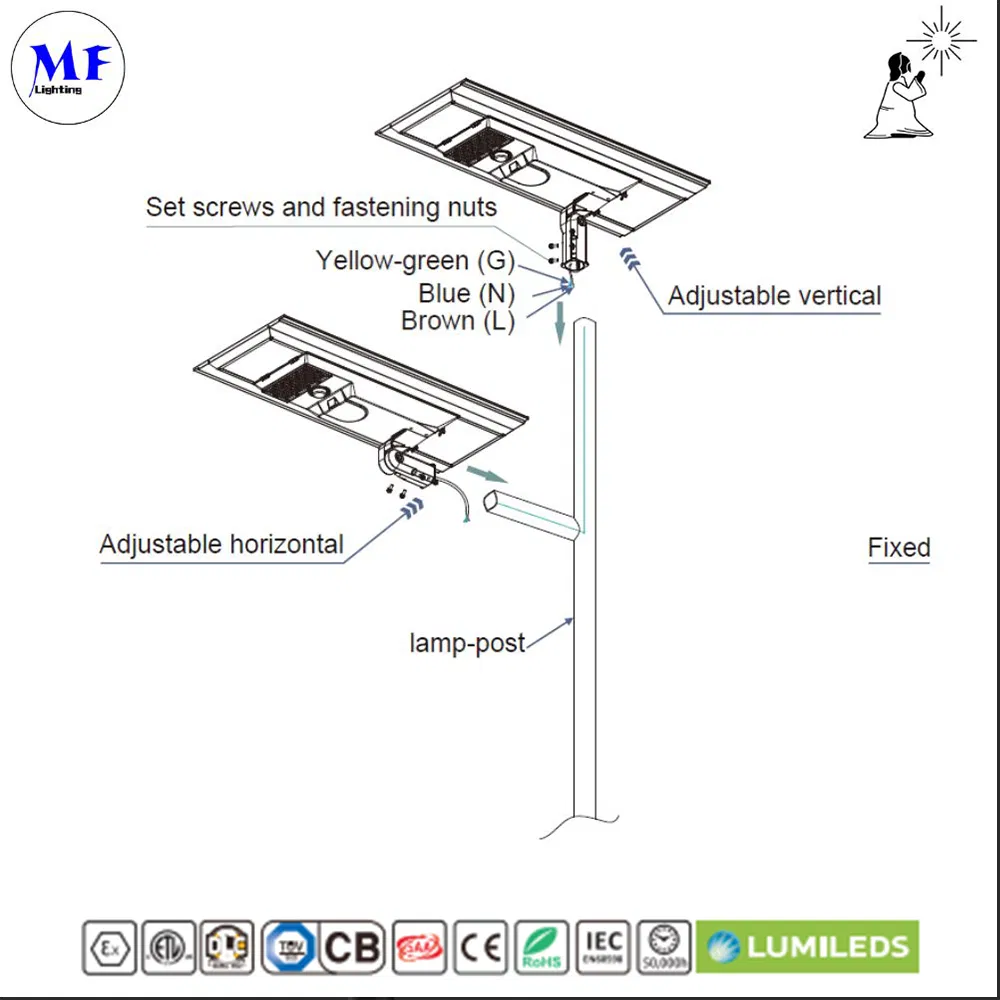

Installation Instructions
Installation Step 1 Installation Step 2 Installation Step 3
Packaging & Shipping

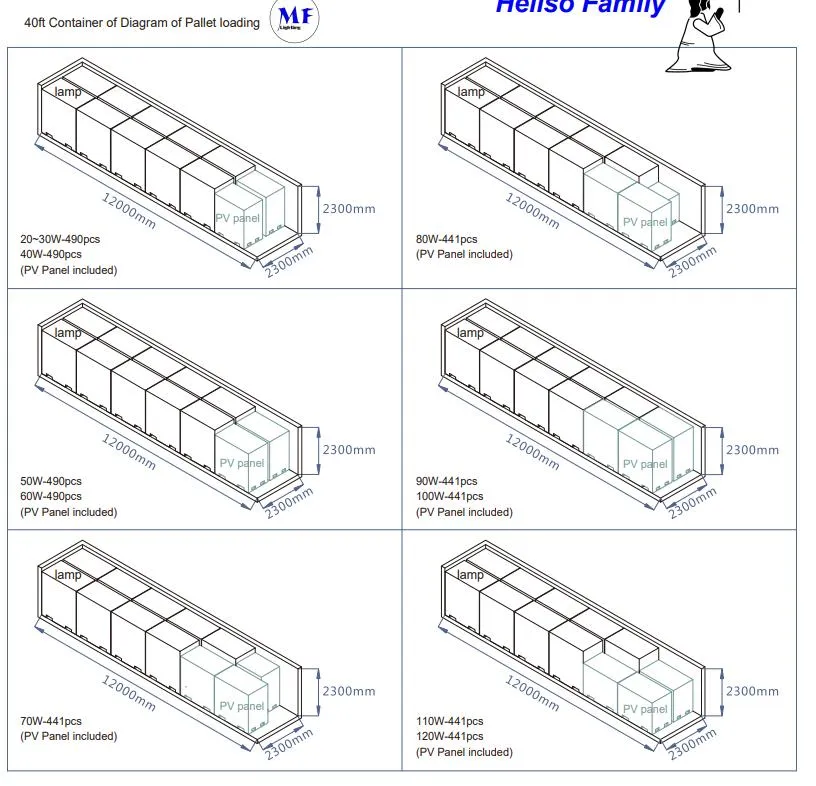

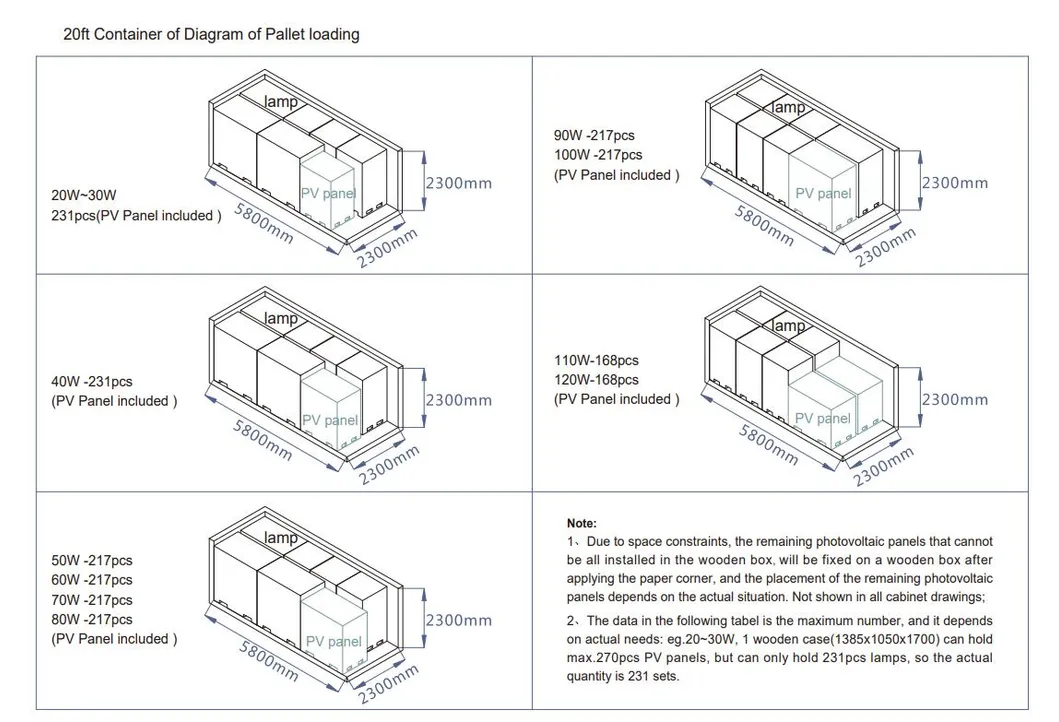

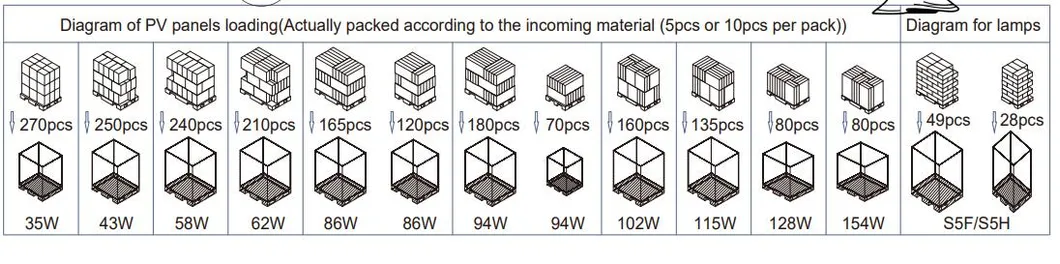

Diagram of Pallet Loading Pallet Loading 1 Pallet Loading 2 Shipping Logistics Packaging Detail
Versatile Applications
📍
Street lights are essential for roads, highways, parks, and parking lots, providing nighttime safety and visibility for pedestrians and vehicles.

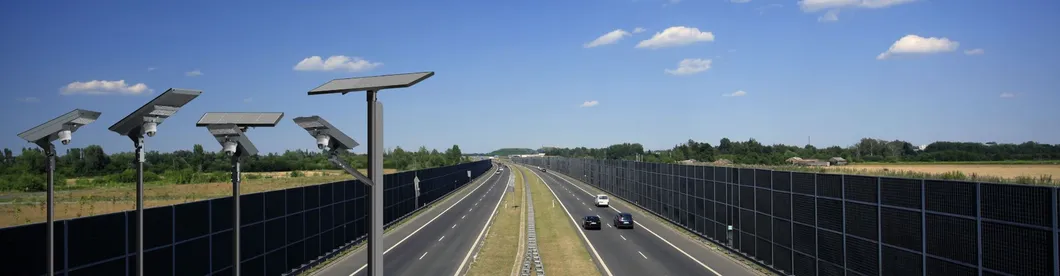

Urban Street Application
🏙️
Urban Landscapes: Enhance city beauty and promote nighttime tourism and economic growth.

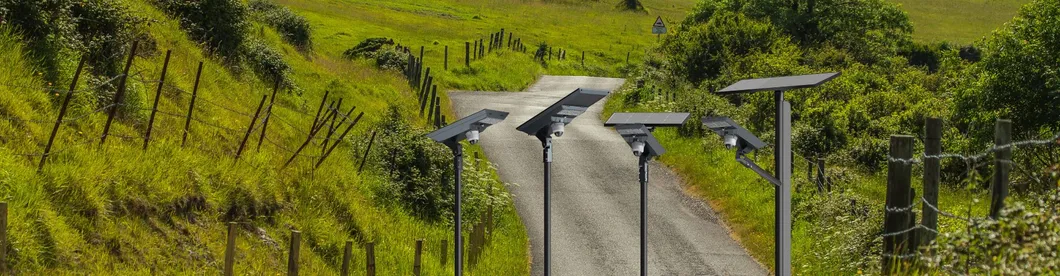

Community Application
🐾

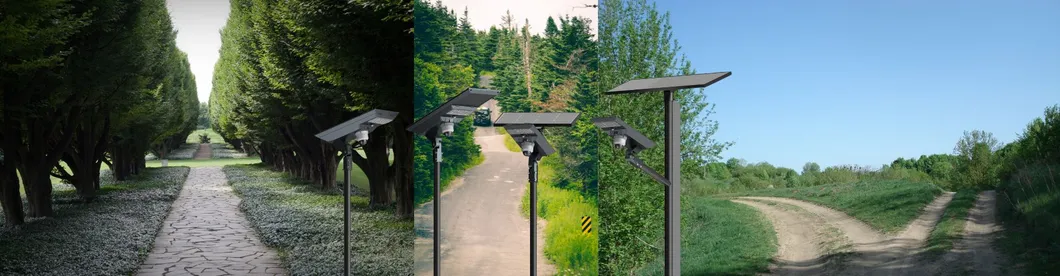

Wildlife Protection: Provides safety in nature reserves while minimizing disturbance to wildlife.
Natural Reserve Application
🛡️
Community Security: Increases residents' sense of safety and helps reduce crime rates.

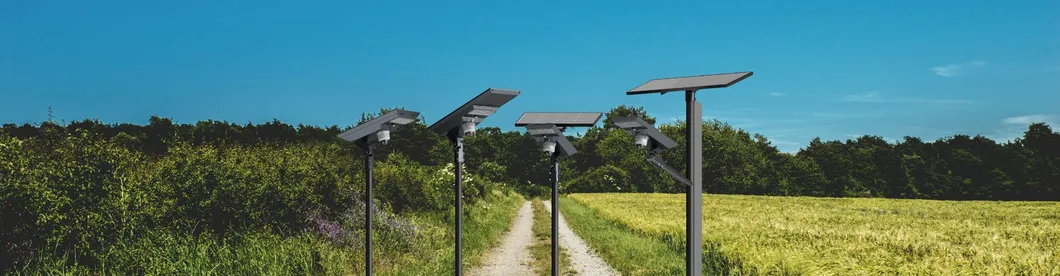

Residential Safety Application
Frequently Asked Questions
Q1: Are you a professional manufacturer? Yes, we have over 14 years of experience in research, development, and manufacturing, operating under strict ISO quality management systems since 2009.
Q2: Can I order a sample for quality testing? Yes, we welcome sample orders to test and verify the quality of our solar lights. Mixed samples are also available.
Q3: What is the estimated lead time for orders? Sample orders typically take 3-7 days. For mass production, the lead time is approximately 15-25 days depending on the order quantity.
Q4: What shipping methods do you offer? We offer various shipping options including Sea Freight, Air Freight, and Express services (DHL, UPS, FedEx, TNT).
Q5: Is OEM/Logo printing service available? Yes, we provide full OEM services, including custom labels and color boxes based on your specific requirements.
Q6: What is the warranty and how are defects handled? We offer a 5-year warranty. Our defect rate is below 0.2%. If a failure occurs, provide photos or video, and we will ship replacement units promptly.
