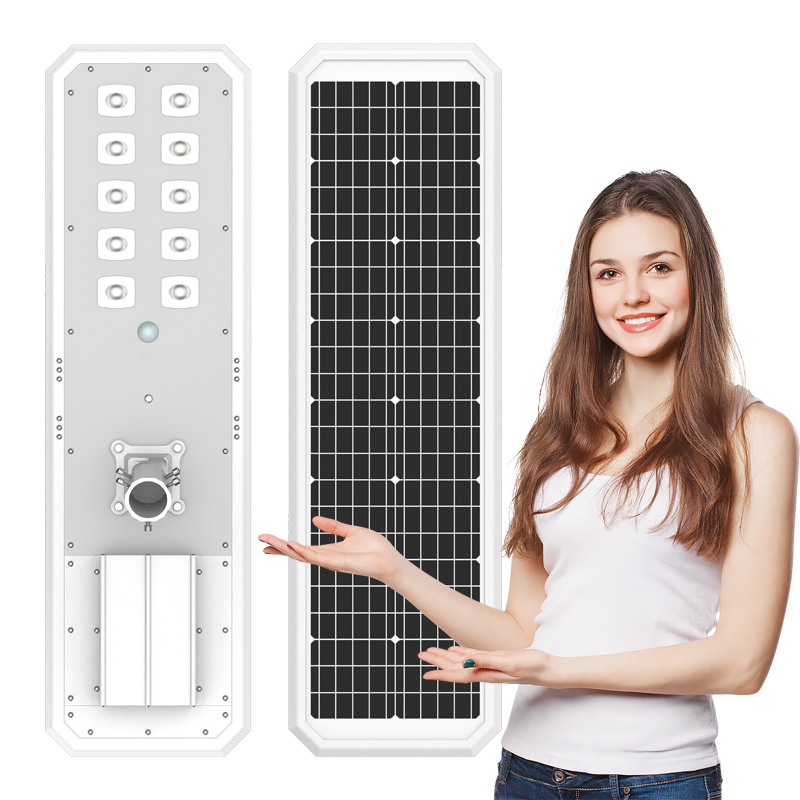

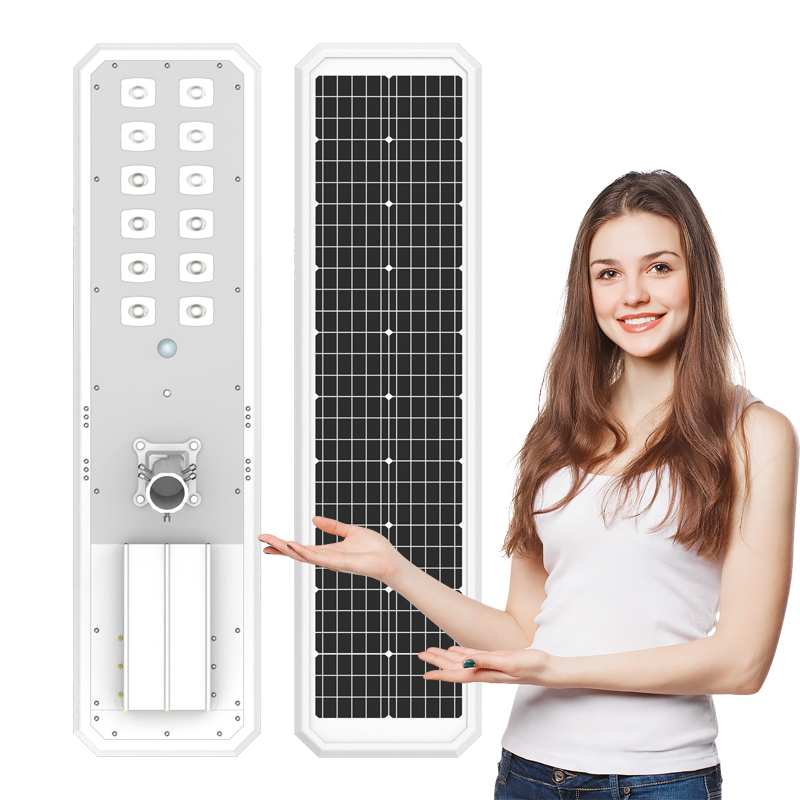

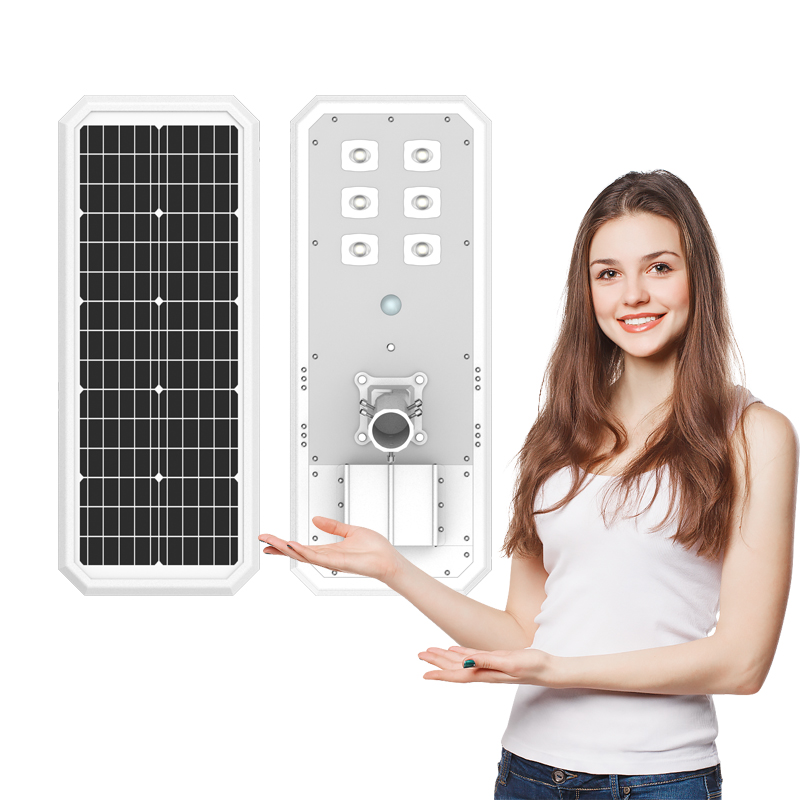

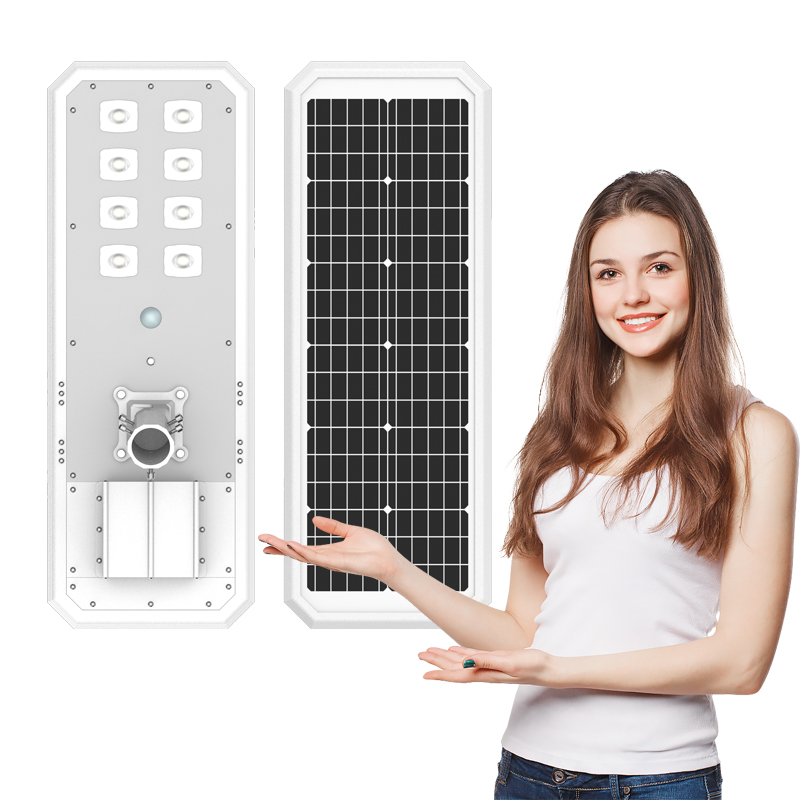

LED Monocrystalline Silicon Solar Light Outdoor All in One Solar Street Lights Outdoor Waterproof High Quality

Product Description

Product Description

What are the two types of solar street light?

There are two types of solar panels commonly used in solar street lights: monocrystalline and polycrystalline. The conversion rate of mono-crystalline solar panels is much higher than their poly-crystalline counterparts. Solar panels also vary in wattage systems.

Monocrystalline silicon because by its own tension active adsorption to the head, impurities increase the weight, is not easy to crystallize to the lead. When the crystallization is carried out to a relatively low liquid level. When impurities accumulate at the bottom, the crystals cannot be pulled up, but the material at the bottom can also be added with new materials, which can be naturally precipitated into polycrystalline cells after melting. Therefore, the purity of single chip is generally higher than that of polychip, and the higher the purity, the higher the conversion efficiency.

* All of our solar panels are monocrystalline.

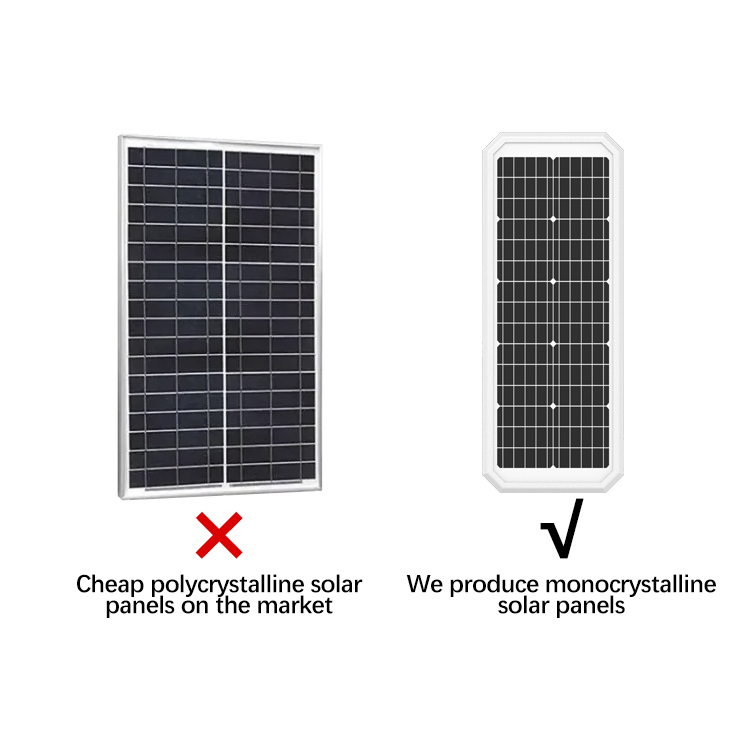

Solar Light Analysis Solar Light Components
Specifications

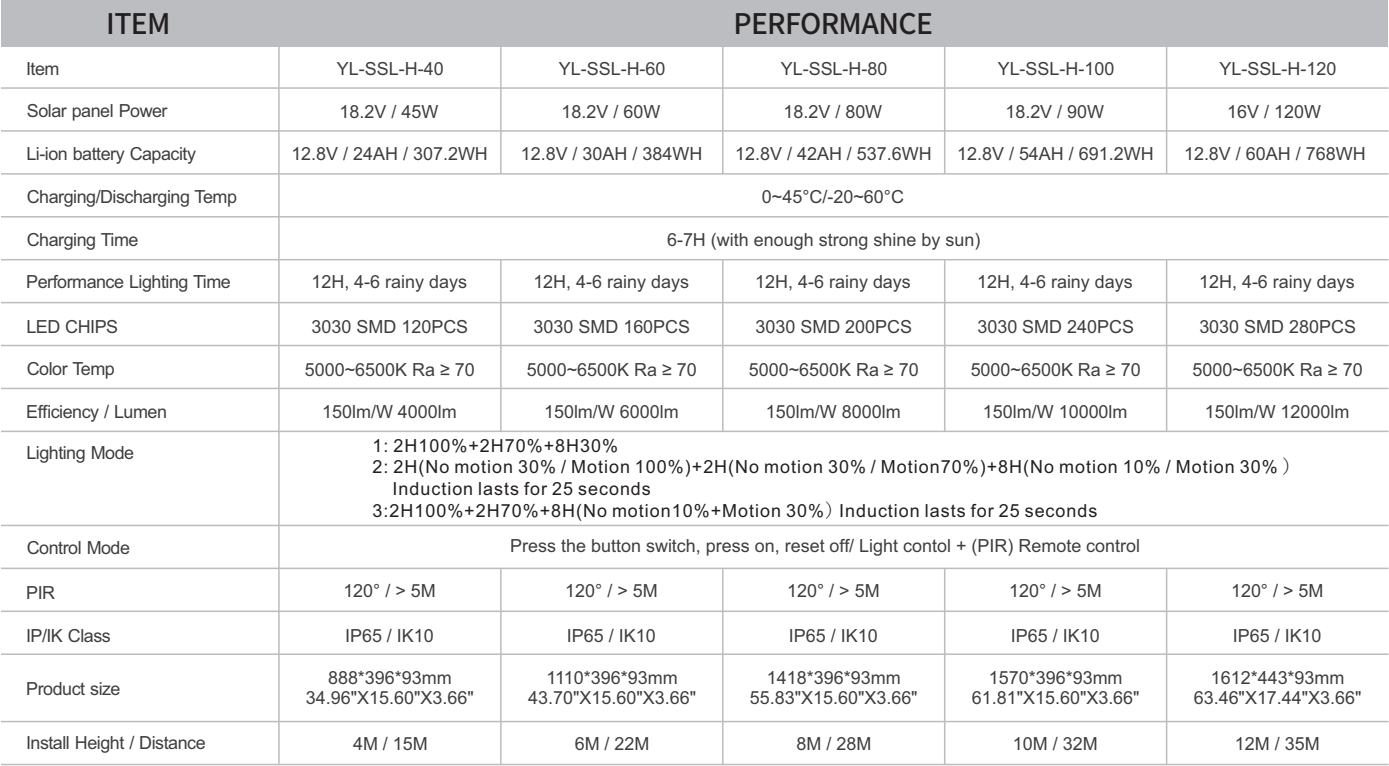

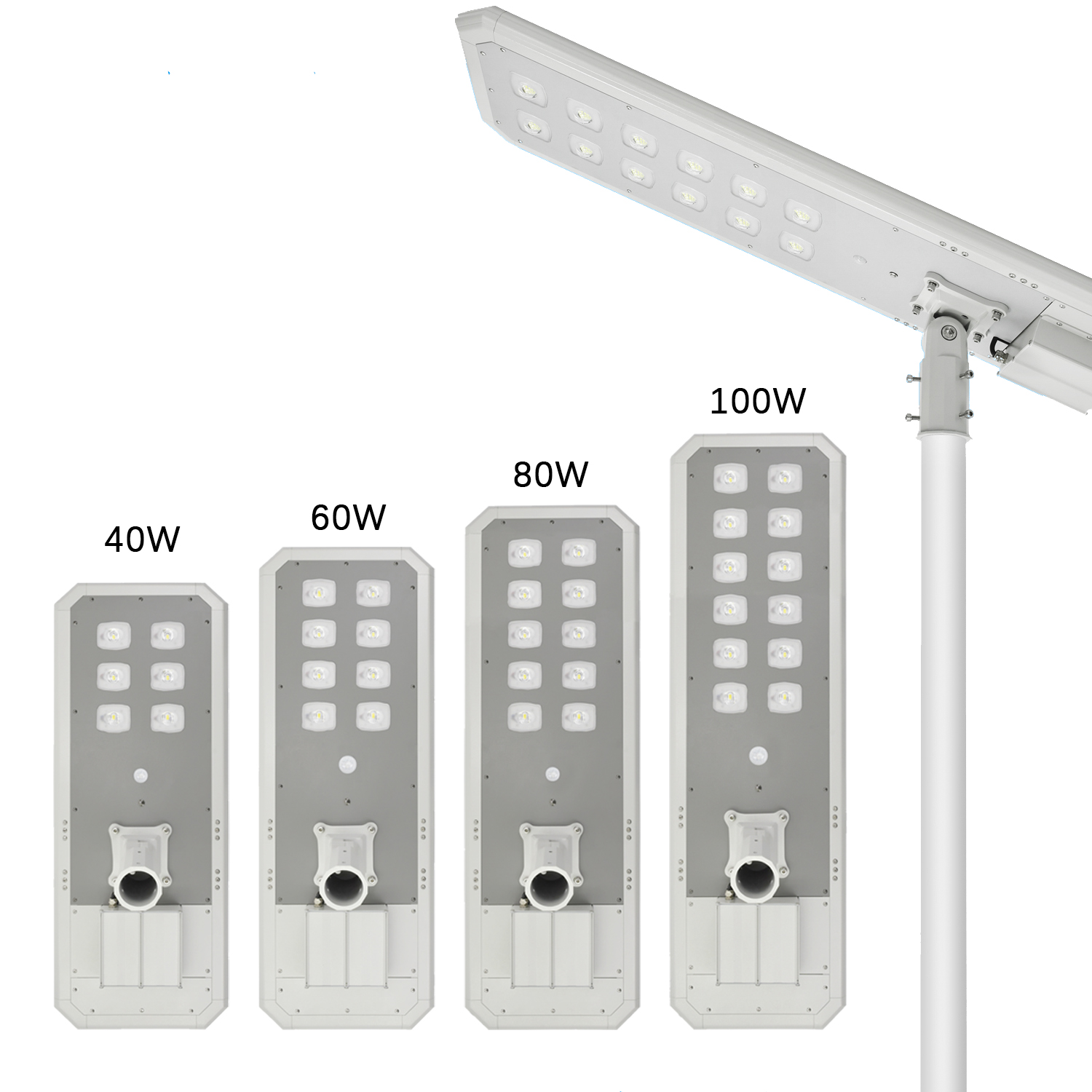

Technical Specs 1 Technical Specs 2 Technical Specs 3
Product Details & Technology

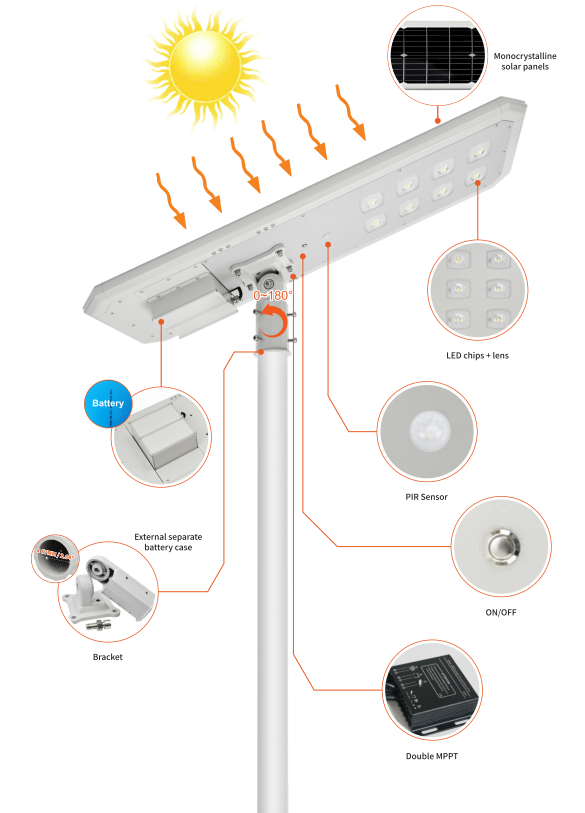

Tech Diagram
A
BMS technology speeds up the battery charging over 30%.
B
Never stop lighting with New HI-technology-ALS 2.3 Up to 10 rainy or cloudy days.
C
Powerful Lithium battery with 1500 cycles, widely used in new-energy cars.
D
4 Intelligent Core Technology broke the bottleneck of short working time in rainy/cloudy days, realizing 100% lighting throughout the year.
E

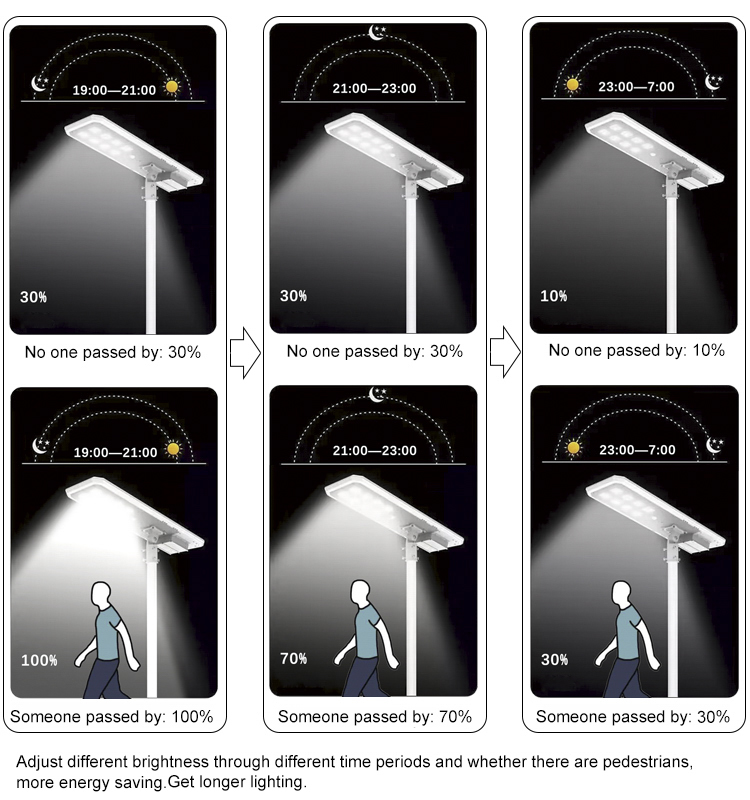

Intelligent drive LED management: light control function, five-stage time control, and dimming function.
F
Maintenance efficiency: Each part can be replaced on the pole directly, saving maintenance costs.
Installation Instructions

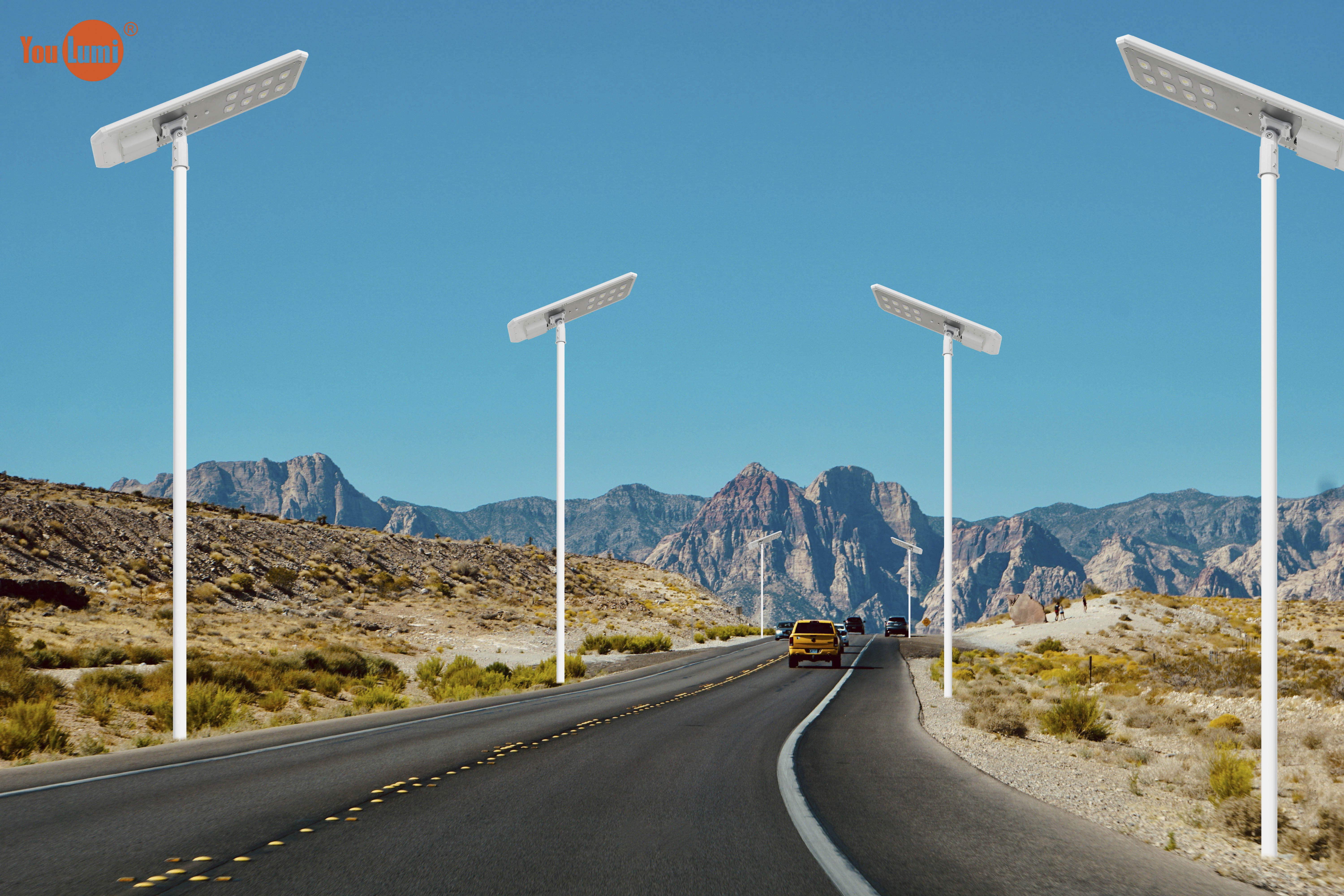

Installation Overview
Step A

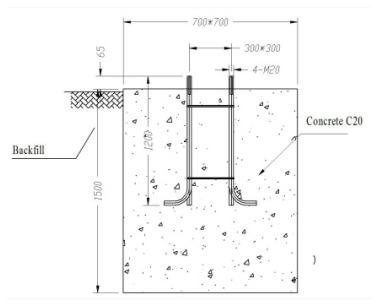

Step A: Dig a hole according to the size of the foundation cage, put the foundation cage into the hole and fix it with concrete C20.
Step B

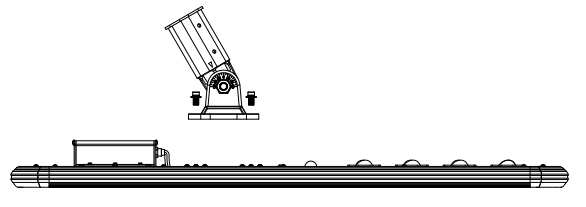

Step B: Use the supplied screws to fix the bracket on the lamp.
Step C

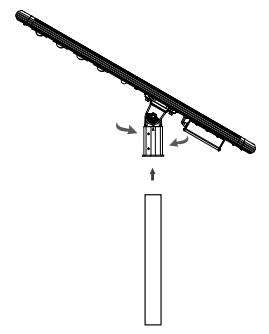

Step C: Use the supplied screws to fix the lamp on the post.
Step D

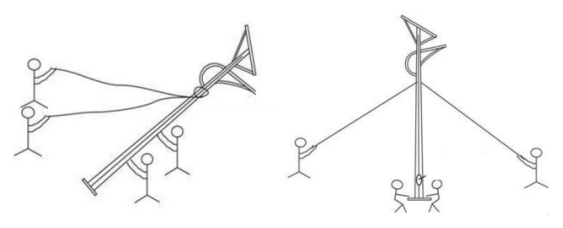

Step D: Lift the lamp pole, align the bottom flange with the foundation cage, and fix with screws.
Operation Guide

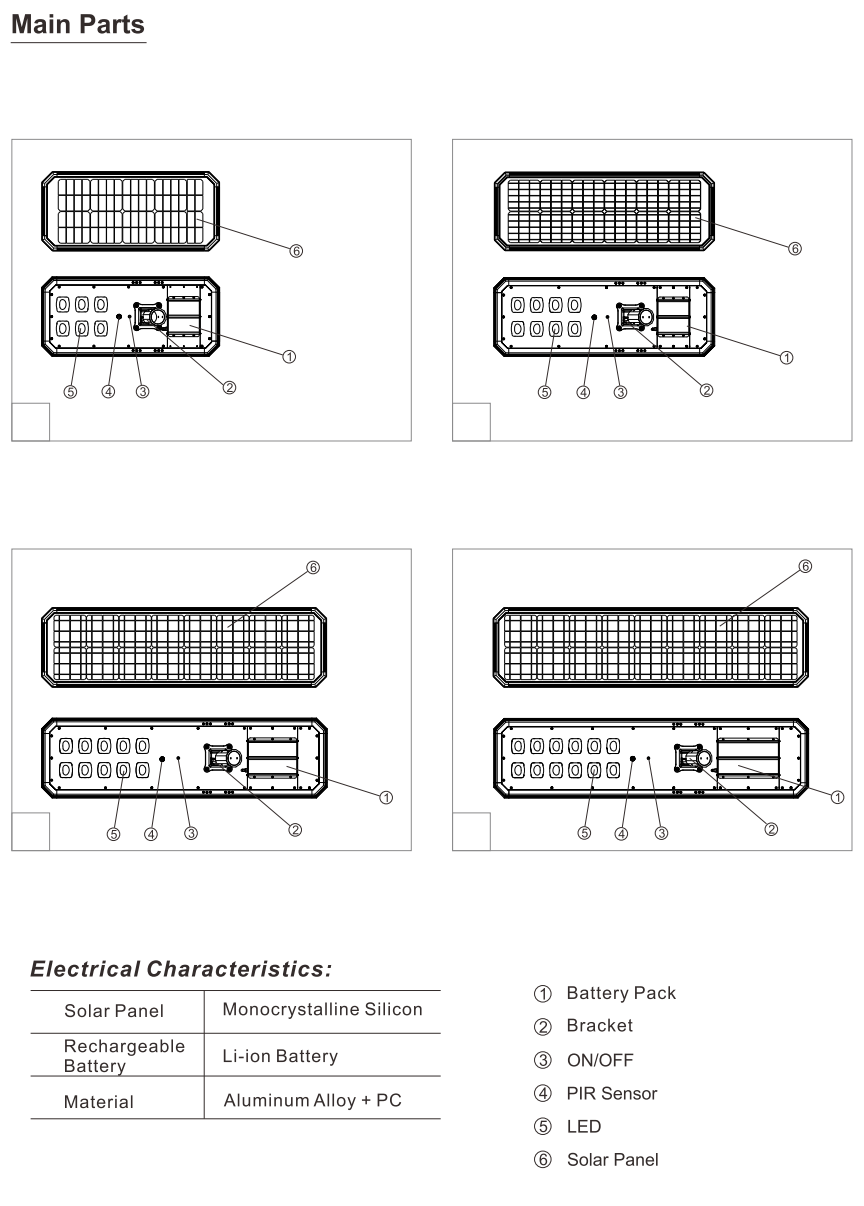

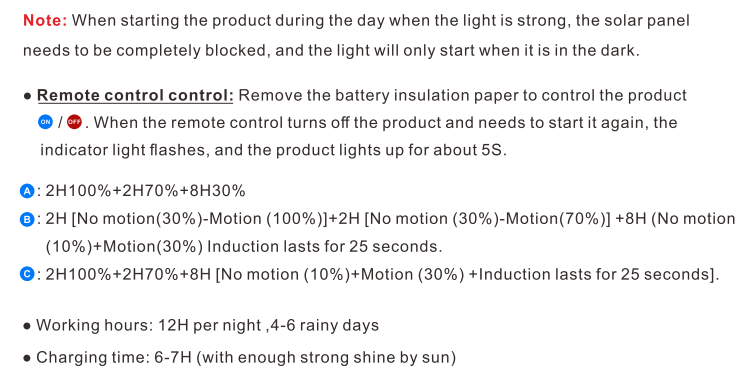

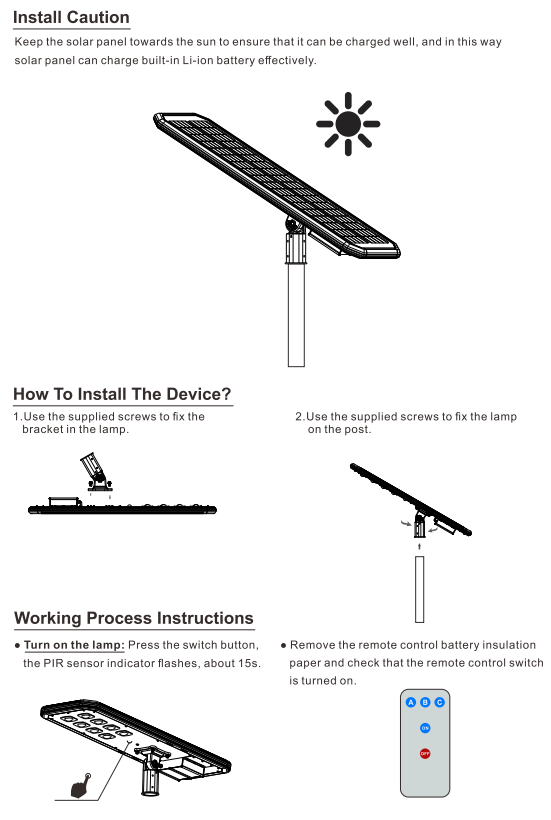

Operation 1 Operation 2 Operation 3
Packing & Delivery

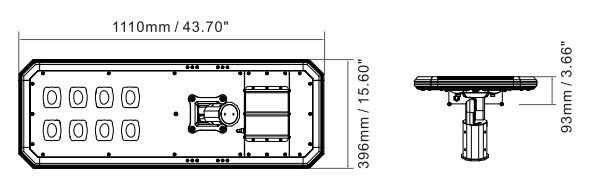

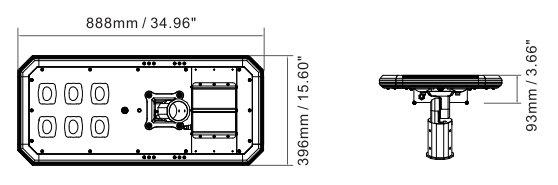

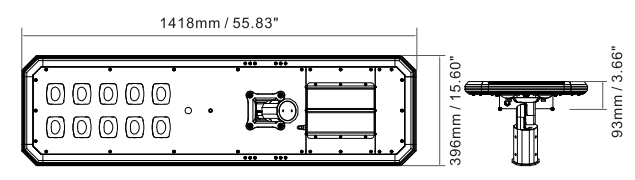

Packing 1 Packing 2 Packing 3
MODEL NO. N.W.(KG) G.W.(KG) QTY/CTN CARTON SIZE (Outer Box)
YL-SSL-H-4010.11kg11.30kg1pc980*165*475mm
YL-SSL-H-6012.43kg13.65kg1pc1202*165*475mm
YL-SSL-H-8015.50kg16.80kg1pc1510*165*475mm
YL-SSL-H-10019.65kg21.05kg1pc1660*165*475mm
Bracket1.50kg2.05kg1pc260*170*140mm

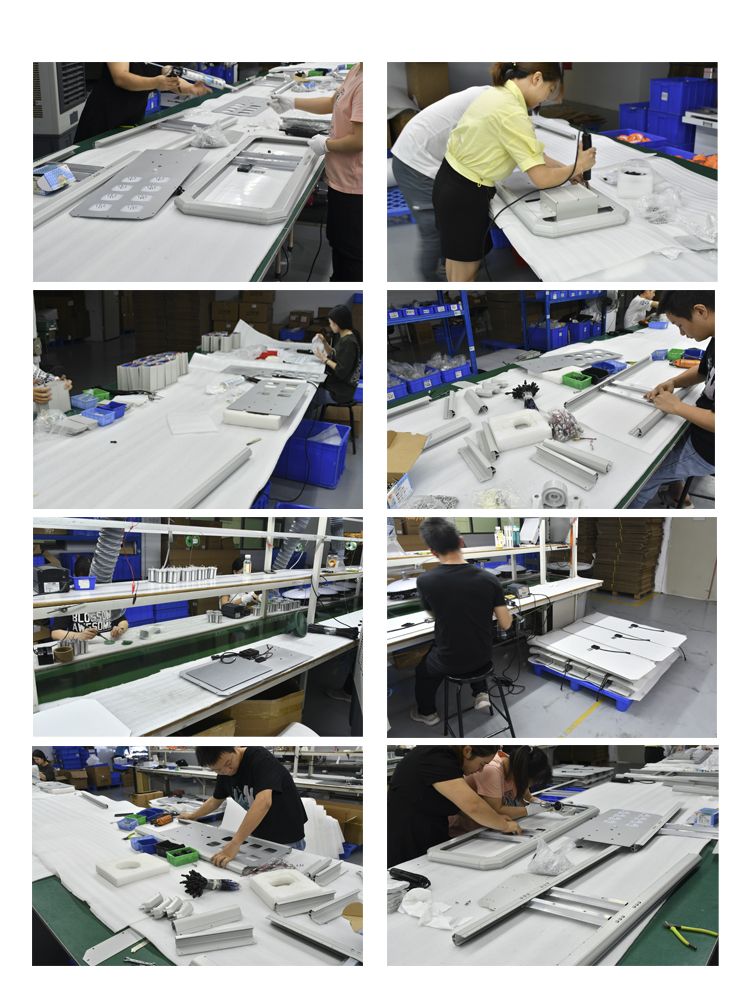

Shipping Image
Company Profile

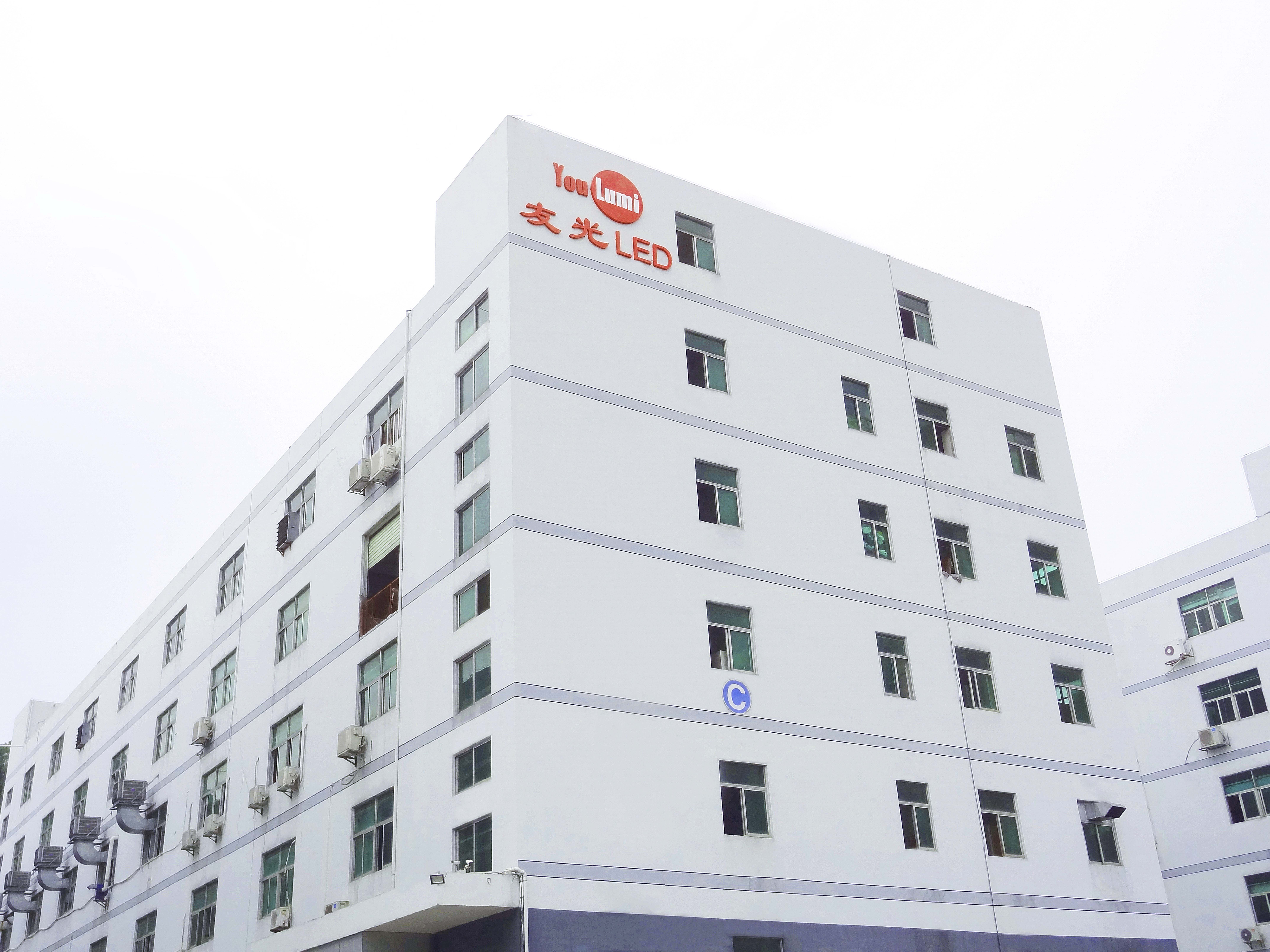

Factory Image

We specialize in manufacturing LED lighting products. We boast a professional and experienced R&D team, determined to overcome the challenges of development, production, and distribution. Our motivated team members propel advancements in LED technology, setting a benchmark for competitors in the industry.

Established in July 2012, we are committed to producing high-quality LED products. Over the years, we successfully premiered innovative corn lights with embedded drivers. Our product range continuously expands, including flagship models that perfectly supersede 400W and 1000W HID light sources. Our innovation continues with retrofitting kits and advanced solar solutions put into the market.

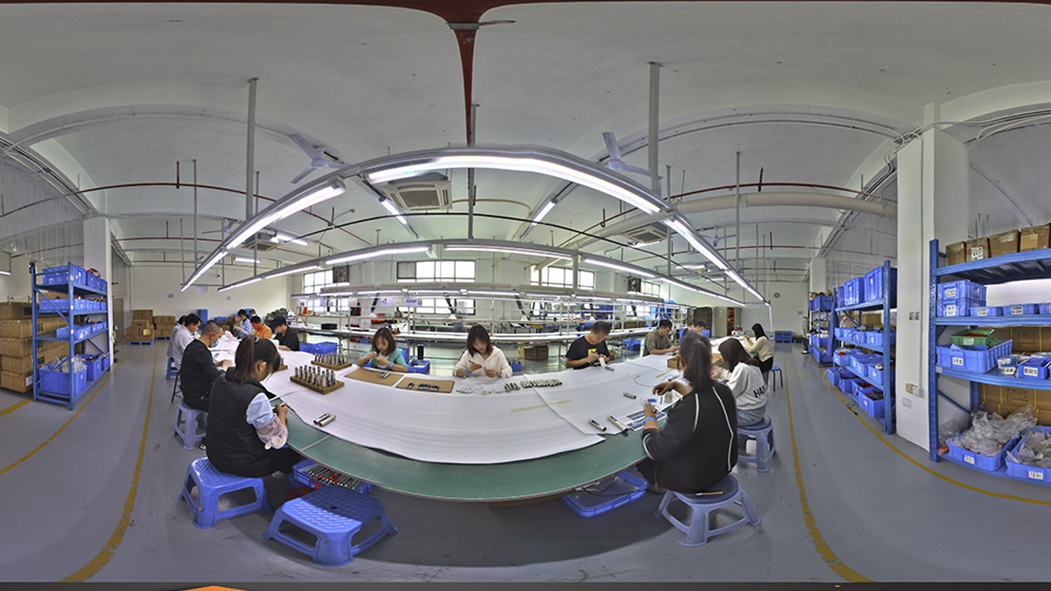

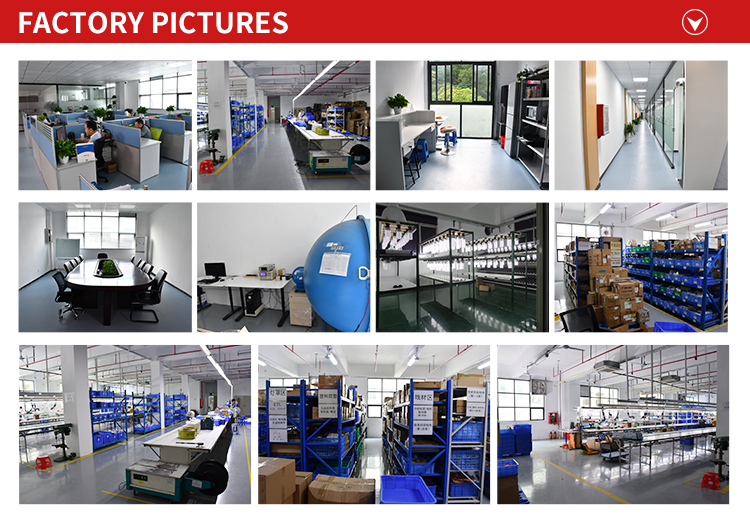

Workshop Showroom
Frequently Asked Questions
What are the main advantages of your solar street lights?
Our lights feature BMS technology for 30% faster charging, ALS 2.3 technology for up to 10 days of lighting in rainy weather, and a 1500-cycle lithium battery.
How do you ensure product quality?
100% of the lamps are tested and kept lit for 12 hours to verify reliability. Each lamp passes strict QC procedures before shipping.
What is the typical delivery time for orders?
Sample orders take 3-7 working days, while bulk orders typically take 30-40 working days.
What are the available shipping methods?
We offer Express (DHL, UPS, Fedex - 3-5 days), Air Freight (10-20 days), and Sea Freight for large, non-urgent quantities.
What kind of after-sales service do you provide?
We provide quick replies to all questions. If any quality issues occur, we provide free replacements to ensure a happy ordering experience.
What are your payment terms?
For samples, 100% advance via Bank TT or Paypal. For bulk orders, 30% deposit and 70% balance before shipment.
